Simplified Solutions
The Quick Flex QF75-02 provides a simplified solution for creating a modular DALI, DSI, CBus or BMS backbone allowing for direct retrofit of a 3-pin install, whilst providing the foundation for future intelligent lighting fit outs.
Utilising QF7A Light lead/5-pin plugs together with QF2 interconnecting leads, the Quick Flex QF72-02 socket makes quick and easy work of daisy-chaining multiple luminaires into a service outlet. Inclusion of both hardwired and continuous-line mounting provide flexible installation options catering to any application.
The 5-pin outlet also directly accepts the retrofit of AS/NZS 3112 standard 3-pin plugs for existing installations with the option to upgrade to an intelligent lighting control system in the future.

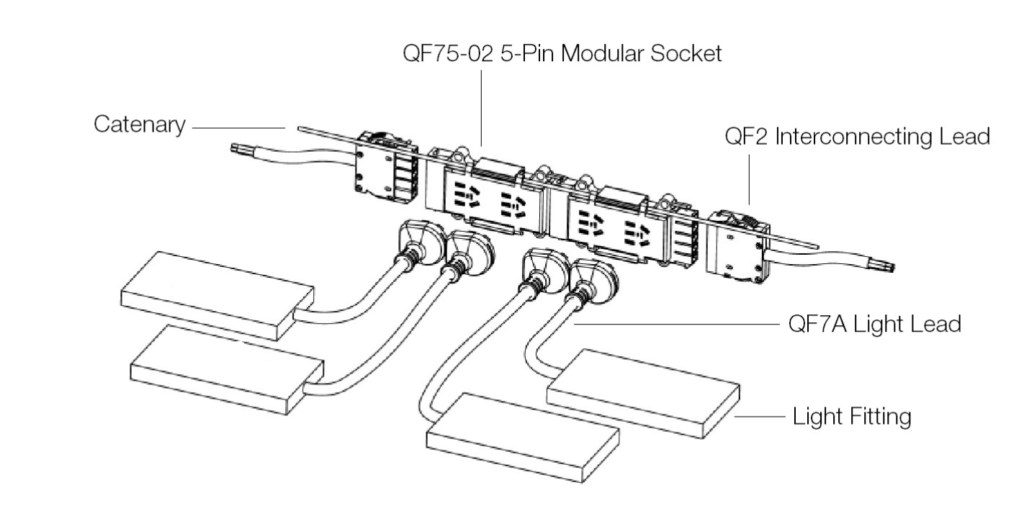

QF75-02 5-Pole Linkable Socket Schematic
DALI - Dual socket 10amp 250v 5pin socket
QF75-02BK
DALI - Dual socket 10amp 250v 5pin socket
DALI - Light lead free end to CMS 5pin plug (2500mm 5pin ROHS Light lead 10amp 5 x 1.0mm² )
QF7AT-25**
DALI - Light lead free end to CMS 5pin plug
